 OZBM60 Series |
|
|
|

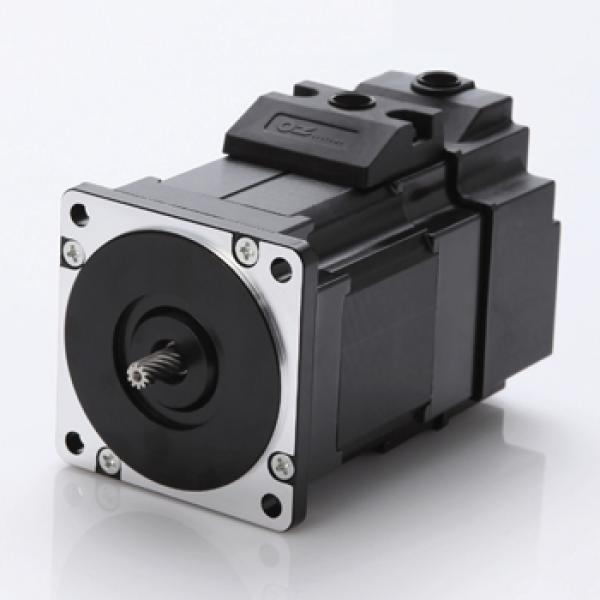

국내 최초 BLDC모터에 내장형 엔코더를 적용한 위치제어용 BLDC모터입니다.
|
|
| |
| General Specification |
|
|
|
| 1 |
Winding Type |
Y |
| 2 |
Hall Effect Angle |
120 degree |
| 3 |
Number of Poles |
4 |
| 4 |
Number of Phase |
3 |
| 5 |
Insulation Class |
B |
| 6 |
Insulation Resistance |
100MΩ / Min. DC 500V |
| 7 |
Dielectric Stength |
AC 800V / Min. |
| 8 |
Max. Radial Load |
80N (5mm from flange) |
| 9 |
Max. Axial Load |
50N |
| 10 |
Protective Enclosure Rating |
IP40 |
|
|
| |
| OZBM60 |
013D2-xE |
026D2-xE |
040D2-xE |
| 1 |
Rated Input Voltage |
VDC |
24 |
24 |
24 |
| 2 |
Rated Output Power |
W |
13 |
26 |
40 |
| 3 |
Rated Speed |
RPM |
3000 |
3000 |
3000 |
| 4 |
Rated Torque |
N.m |
0.031 |
0.062 |
0.125 |
| 5 |
Peak Torque |
N.m |
0.093 |
0.186 |
0.375 |
| 6 |
Rated Current |
A |
1.4 |
2.8 |
4.2 |
| 7 |
Peak Current |
A |
4.2 |
8.4 |
12.6 |
| 8 |
Rotor Inertia |
g.㎠ |
94 |
145 |
204 |
| 9 |
Motor Body Length |
mm |
79 |
89 |
99 |
| 10 |
Motor Mass |
kg |
0.64 |
0.80 |
0.98 |
|
| |

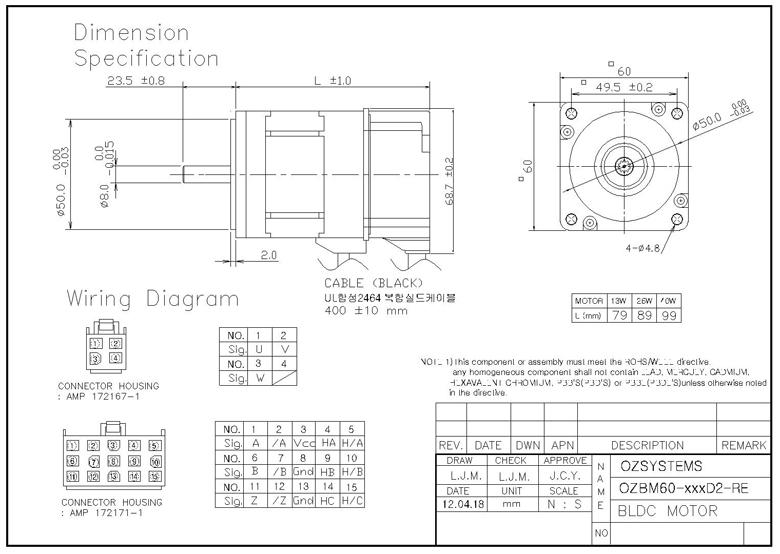

| Dimension Specification |
|
|
|
|
| |
 |
| |
|
|
|
| |
|
|
